Product Description

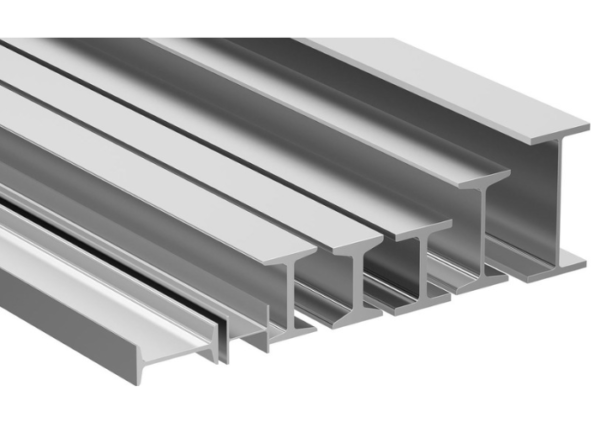

IPE profiles, also known as European Standard Universal Beam Profiles with Parallel Flange, are constructed in parallel with flange areas. Although these profiles are designed to meet the basic needs of the building/construction industry, they are also often used in the basic construction, infrastructure, and machinery manufacturing industries. Light series IPE-A, IPE-AA, IPE-AAA, and IPE-AAAA can also be manufactured for locations where lightning is required in construction design. IPE profiles are also highly resistant to bending and torsion, making them ideal for use in structures that require high load-bearing capacity. The flanges of these profiles are designed to provide additional support and stability, which are essential for ensuring the structural integrity of buildings and other structures. Furthermore, IPE profiles are available in a wide range of sizes and dimensions, making them suitable for use in a variety of applications. Whether you need IPE profiles for a large-scale construction project or for a smaller-scale application, our company can provide you with high-quality products.
IPE Beam Sizes(mm) |
|||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
G kg/m |
h mm |
b mm |
tw mm |
tf mm |
r mm |
A cm2 |
|||||||||||
IPE 80 | 6,00 | 80 | 46 | 3,8 | 5,2 | 5 | 7,60 | ||||||||||
IPE A 80 | 5,00 | 78 | 46 | 3,3 | 4,2 | 5 | 6,40 | ||||||||||
IPE AA 80 | 4,90 | 78 | 46 | 3,2 | 4,2 | 5 | 6,30 | ||||||||||
IPE AAA 80 | 4,69 | 78 | 46 | 3,0 | 4,0 | 5 | 5,98 | ||||||||||
IPE AAAA 80 | 3,99 | 76 | 46 | 2,9 | 3,1 | 5 | 5,08 | ||||||||||
IPE 100 | 8,10 | 100 | 55 | 4,1 | 5,7 | 7 | 10,30 | ||||||||||
IPE A 100 | 6,90 | 98 | 55 | 3,6 | 4,7 | 7 | 8,80 | ||||||||||
IPE AA 100 | 6,70 | 97,6 | 55 | 3,6 | 4,5 | 7 | 8,60 | ||||||||||
IPE AAA 100 | 6,41 | 97 | 55 | 3,4 | 4,3 | 7 | 8,16 | ||||||||||
IPE AAAA 100 | 5,46 | 96 | 55 | 2,9 | 3,6 | 7 | 6,95 | ||||||||||
IPE 120 | 10,40 | 120 | 64 | 4,4 | 6,3 | 7 | 13,20 | ||||||||||
IPE A 120 | 8,70 | 117,6 | 64 | 3,8 | 5,1 | 7 | 11,00 | ||||||||||
IPE AA 120 | 8,40 | 117 | 64 | 3,8 | 4,8 | 7 | 10,70 | ||||||||||
IPE AAA 120 | 7,90 | 117 | 64 | 3,5 | 4,6 | 7 | 10,06 | ||||||||||
IPE AAAA 120 | 6,73 | 115 | 64 | 3,0 | 3,9 | 7 | 8,57 | ||||||||||
IPE 140 | 12,90 | 140 | 73 | 4,7 | 6,9 | 7 | 16,40 | ||||||||||
IPE A 140 | 10,50 | 137,4 | 73 | 3,8 | 5,6 | 7 | 13,40 | ||||||||||
IPE AA 140 | 10,10 | 136,6 | 73 | 3,8 | 5,2 | 7 | 12,80 | ||||||||||
IPE AAA 140 | 9,52 | 136 | 73 | 3,5 | 5,0 | 7 | 12,13 | ||||||||||
IPE AAAA 140 | 8,30 | 134 | 73 | 3,3 | 4,1 | 7 | 10,57 | ||||||||||
IPE 160 | 15,80 | 160 | 82 | 5,0 | 7,4 | 9 | 20,10 | ||||||||||
IPE A 160 | 12,70 | 157 | 82 | 4,0 | 5,9 | 9 | 16,20 | ||||||||||
IPE AA 160 | 12,30 | 156,4 | 82 | 4,0 | 5,6 | 9 | 15,70 | ||||||||||
IPE AAA 160 | 11,76 | 156 | 82 | 3,7 | 5,4 | 9 | 14,98 | ||||||||||
IPE AAAA 160 | 10,24 | 154 | 82 | 3,6 | 4,3 | 9 | 13,04 | ||||||||||
IPE 180 | 18,80 | 180 | 91 | 5,3 | 8,0 | 9 | 23,90 | ||||||||||
IPE A 180 | 15,40 | 177 | 91 | 4,3 | 6,5 | 9 | 19,60 | ||||||||||
IPE AA 180 | 14,90 | 176,4 | 91 | 4,3 | 6,2 | 9 | 19,00 | ||||||||||
IPE AAA 180 | 14,13 | 176 | 91 | 3,9 | 6,0 | 9 | 18,00 | ||||||||||
IPE AAAA 180 | 12,57 | 174 | 91 | 3,9 | 4,9 | 9 | 16,01 | ||||||||||
IPE 200 | 22,40 | 200 | 100 | 5,6 | 8,5 | 12 | 28,50 | ||||||||||
IPE A 200 | 18,40 | 197 | 100 | 4,5 | 7,0 | 12 | 23,50 | ||||||||||
IPE AA 200 | 18,00 | 196,4 | 100 | 4,5 | 6,7 | 12 | 22,90 | ||||||||||
IPE AAA 200 | 17,12 | 196 | 100 | 4,1 | 6,5 | 12 | 21,81 | ||||||||||
IPE AAAA 200 | 15,02 | 193 | 100 | 4,1 | 5,2 | 12 | 19,13 | ||||||||||
IPE 220 | 26,20 | 220 | 110 | 5,9 | 9,2 | 12 | 33,40 | ||||||||||
IPE A 220 | 22,20 | 217 | 110 | 5,0 | 7,7 | 12 | 28,30 | ||||||||||
IPE 240 | 30,70 | 240 | 120 | 6,2 | 9,8 | 15 | 39,10 | ||||||||||
IPE A 240 | 26,20 | 237 | 120 | 5,2 | 8,3 | 15 | 33,30 | ||||||||||
IPE 270 | 36,10 | 270 | 135 | 6,6 | 10,2 | 15 | 45,90 | ||||||||||
IPE A 270 | 30,70 | 267 | 135 | 5,5 | 8,7 | 15 | 39,20 | ||||||||||
IPE 300 | 42,20 | 300 | 150 | 7,1 | 10,7 | 15 | 53,80 | ||||||||||
IPE A 300 | 36,50 | 297 | 150 | 6,1 | 9,2 | 15 | 46,50 |
