Equal Angle

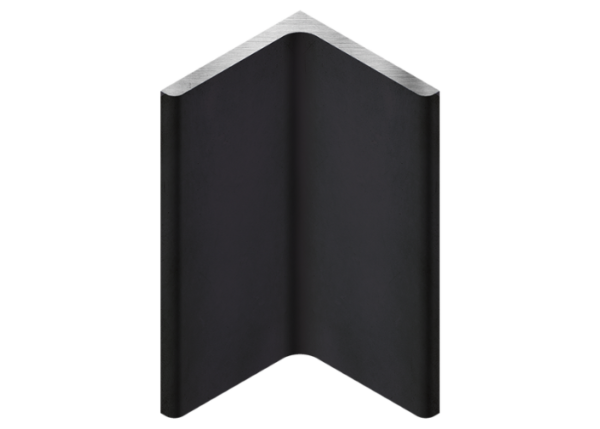

An Equal Angle Profile has an “L” shape, which is a type of steel profile that has two equal sides that form a right angle.
Product Description
An Equal Angle Profile has an “L” shape, which is a type of steel profile that has two equal sides that form a right angle. The equal angle profile is commonly used in construction and engineering applications due to its strength and versatility. It is often used as a structural support for buildings and bridges, as well as for framing in metalworking and carpentry. Additionally, it can be used in the manufacturing of machinery and equipment, as well as in the creation of decorative elements such as stair railings and fencing. The equal angle profile’s durability and resistance to deformation make it a reliable choice for a wide range of applications.
|
Equal Angle Sizes (inch) |
|||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| inch | 3/32 | 7/64 | 1/8 | 5/32 | 3/16 | 1/4 | 5/16 | 3/8 | 7/16 | 1/2 | 9/16 | 5/8 | 3/4 | 7/8 | 1 | 1 1/8 | |
| 3/4×3/4 | 0,9 | ||||||||||||||||
| 7/8×7/8 | 0,91 | 1,04 | 1,49 | 1,91 | |||||||||||||
| 1×1 | 1,05 | 1,2 | 1,46 | 1,8 | 2,2 | ||||||||||||
| 1 1/4×1 1/4 | 1,34 | 1,5 | 2,2 | 2,8 | |||||||||||||
| 1 1/2×1 1/2 | 1,47 | 1,8 | 2,2 | 2,7 | 3,4 | ||||||||||||
| 1 3/4×1 3/4 | 2,1 | 3,1 | 4,1 | ||||||||||||||
| 2×2 | 2,4 | 3,6 | 4,7 | 5,8 | 7 | ||||||||||||
| 2 1/4×2 1/4 | 4,15 | 5,59 | |||||||||||||||
| 2 1/2×2 1/2 | 4,6 | 6,1 | 7,4 | 8,7 | 11,4 | ||||||||||||
| 3×3 | 5,5 | 7,3 | 9,1 | 10,7 | 12,4 | 14 | |||||||||||
| 3 1/2×3 1/2 | 6,57 | 8,6 | 10,7 | 12,6 | 14,6 | 16,5 | |||||||||||
| 4×4 | 9,8 | 12,2 | 14,6 | 16,8 | 19 | 23,4 | 27,5 | ||||||||||
| 5×5 | 15,3 | 18,3 | 21,3 | 24,1 | 29,8 | 35,1 | 40,5 | ||||||||||
| 6×6 | 18,5 | 22,2 | 25,6 | 29,2 | 32,6 | 36 | 42,7 | 49,3 | 55,7 | ||||||||
| 8×8 | 39,3 | 44 | 48,7 | 57,9 | 67 | 75,9 | 84,7 | ||||||||||
