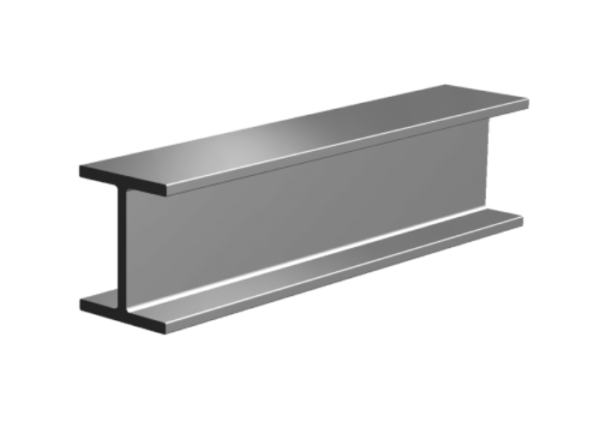

IPN Beam
IPN profiles, also known as European Standard Beam Profiles, are constructed with conical-shaped flange sections.
Product Description
IPN profiles, also known as European Standard Beam Profiles, are constructed with conical-shaped flange sections. Although these profiles are designed to meet the basic needs of the building and construction industries, they are also often used in the basic construction, infrastructure, and industrial industries. Our customers receive profiles of varying quality and cross-sectional production in a timely manner. Additionally, we offer customization options to meet specific project requirements. Our IPN profiles are available in different lengths, thicknesses, and finishes to ensure they are suitable for various applications. We also provide cutting and drilling services to further customize the profiles according to our customers’ needs. With our extensive experience and commitment to quality, we ensure that our IPN profiles meet the highest standards and are delivered on time.
|
IPN Beam Sizes(mm) |
|||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| G kg/m |
h mm |
b mm |
tw mm |
tf mm |
r1 mm |
r2 mm |
A cm2 |
||||||||||
| IPN 80 | 5,9 | 80 | 42 | 3.9 | 5.9 | 3,9 | 2,3 | 7,6 | |||||||||
| IPN 100 | 8,3 | 100 | 50 | 4.5 | 6.8 | 4,5 | 2,7 | 10.6 | |||||||||
| IPN 120 | 11,1 | 120 | 58 | 5,1 | 7,7 | 5,1 | 3,1 | 14,2 | |||||||||
| IPN 140 | 14,3 | 140 | 66 | 5,7 | 8,6 | 5,7 | 3,4 | 18,2 | |||||||||
| IPN 160 | 17,9 | 160 | 74 | 6,3 | 9,5 | 6,3 | 3,8 | 22,8 | |||||||||
| IPN 180 | 21,9 | 180 | 82 | 6,9 | 10,4 | 6,9 | 4,1 | 27,9 | |||||||||
| IPN 200 | 26,2 | 200 | 90 | 7,5 | 11,3 | 7,5 | 4,5 | 33,4 | |||||||||
| IPN 220 | 31,1 | 220 | 98 | 8,1 | 12,2 | 8,1 | 4,9 | 39,5 | |||||||||
| IPN 240 | 36,2 | 240 | 106 | 8,7 | 13,1 | 8,7 | 5,2 | 46,1 | |||||||||
| IPN 260 | 41,9 | 260 | 113 | 9,4 | 14,1 | 9,4 | 5,6 | 53,3 | |||||||||
| IPN 280 | 47,9 | 280 | 119 | 10,1 | 15,2 | 10,1 | 6,1 | 61,0 | |||||||||
| IPN 300 | 54,2 | 300 | 125 | 10,8 | 16,2 | 10,8 | 6,5 | 69,0 | |||||||||
